Mamba X, 25.2V ESC

$244.95

Vendor: Castle Creations

SKU: CSE010015510

Details:

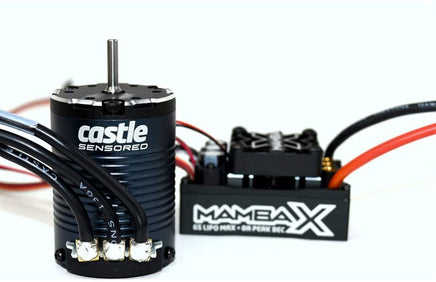

The Castle Mamba X Waterproof Sensored Brushless Combo with 2850Kv Slate 1406 Motor is ideal for 1:10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2S-4S with appropriate gearing.The Castle Creations Mamba X is extremely versatile, and capable of powering a wide variety of applications and vehicles.* The Mamba X is ideal for racing at the track with your 2wd buggy, bashing through mud puddles in your monster truck, or navigating a hardcore trail with your crawler. The Mamba X raises the bar.

Features:

Wide 2S to 6S input voltage range Sensored Motor Support (Castle X-Series Sensor Harness Included) Waterproof 8A Adjustable BEC (5.25V-8.0V) Data-logging Rugged CNC Aluminum Case Castle Link Programming Support SmartSenseª Integrated Capacitors Removable 30mm Cooling Fan Integrated 4mm Bullet Connectors 12 AWG Power Wires Waterproof Switch Audible Alerts The Mamba X is proudly designed and manufactured in Olathe, Kansas Backed by Castle Creations' 1-year warranty and unparalleled "make-it-right" customer support

ESC Specifications:

Input Voltage Range: 2S LiPo (7.4V) to 6S LiPo (25.2V) BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V Operating Environment: Waterproof* design allows for use in nearly any environment. Brake: Proportional Reversible: Yes, but may be disabled for racing. On/Off Switch: Yes Cooling Fan: Yes, factory equipped (30mm), fully removable** (see product Use Statements below) Size (LxWxH): 2.14x1.39x1.18" (54.4x35.2x30.0mm) Weight (with wires): 3.56 oz. (101g) Connectors: 4.0mm female bullets for motor connection. Items Needed for Operation: Battery Connector Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 9bs/4kg Recommended Motors: Castle 1406, 1410 and 1415 Sensored motors Max. Recommended Vehicle Weight: Less than 9bs/4kg, with batteries, ready-to-run Telemetry Link Capable: Yes Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.

Motor Specifications:

Input Voltage Range: 2S-4S LiPo Kv: 2850 Max. RPM: 100,000 Can Length: 49.5mm Can Diameter: 36mm Weight (w/wires): 197 g / 6.9oz Shaft Size: Length: 15mm Shaft Diameter: 1/8" (3.17mm) (Optional 5mm rotor replacement available) Mounting Hole Specifications: M3 @ 25mm Cooling Fan: Optional - Coming Soon Connectors: 4mm male Castle Bullet Connectors Items Needed for Operation: Compatible Electronic Speed Control (ESC) Application Guidelines: Ideal for 1:10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2S-4S with appropriate gearing. Recommended ESC(s): Mamba Max Pro, Mamba X, Mamba Micro X Max. Recommended Vehicle Weight: Running modes: SMARTSENSEª, Sensored, Sensorless with Castle sensored capable ESCs.
