Decoder tester V2.0

SKU: ESU53900
$52.90
Sorry, this item is out of stock

Details:

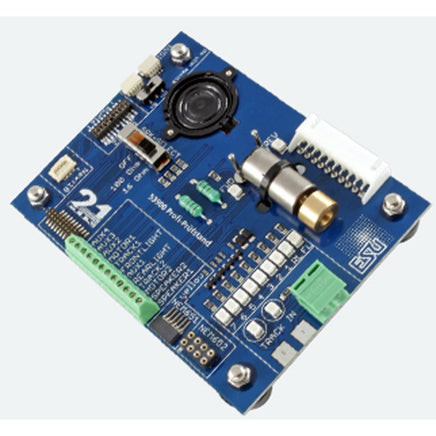

Decoder tester (Replaces 51900), NEM651, NEM652, 21MTC, PluX22, Next18, single wires. With motor, LED-Monitor and 20mm speaker. New socket to accept decoder tester extension 53901.

In order to make things as easy as possible for you, the Profi Decoder Tester is equipped with some useful features. It has all commonly used interface sockets for connecting a decoder for the smaller scale models: Besides a 6-pole NEM 651 socket and the 8-pole NEM 652 socket, it also has a 21MTC interface as per NEM 660, a PluX22 socket as well as a Next18 interface: No matter which type of decoder you have: Simply plug it in – it will fit! And that’s all there is to it! Decoders without any interface can be contacted with individual terminals. A quality coreless motor with a flywheel serves in conjunction with LEDs indicating the direction for checking the motor output: Thus it is quite easy to check on the low-speed performance and the even speed of the decoder. An LED monitor informs you about the functioning of the headlights and backup lights as well as the function outputs AUX1 through AUX6. For testing LokSound decoders we have integrated a 20 mm speaker. You may choose if the integral speaker should be switched off or if it should have 100 Ohm respectively 16 Ohm – thus the Decoder Tester is perfectly suitable for any ESU decoder generation! Two SUSI plugs facilitate the direct test of optional SUSI modules as well as the connection to another circuit board. The electrical connection to either the command station or the LokProgrammer is facilitated by a removable, 2-pole terminal block (same system as used on the LokProgrammer and the ECoS) or via two solder points.
