Quicrun WP 10BL80 Crawler & 3530SL 2200KV Outer Motor Combo
Quicrun WP 10BL80 Crawler & 3530SL 2200KV Outer Motor Combo
Compact, Powerful, and Capable: 4S/80A performance in a 36x30x15.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.
Includes:

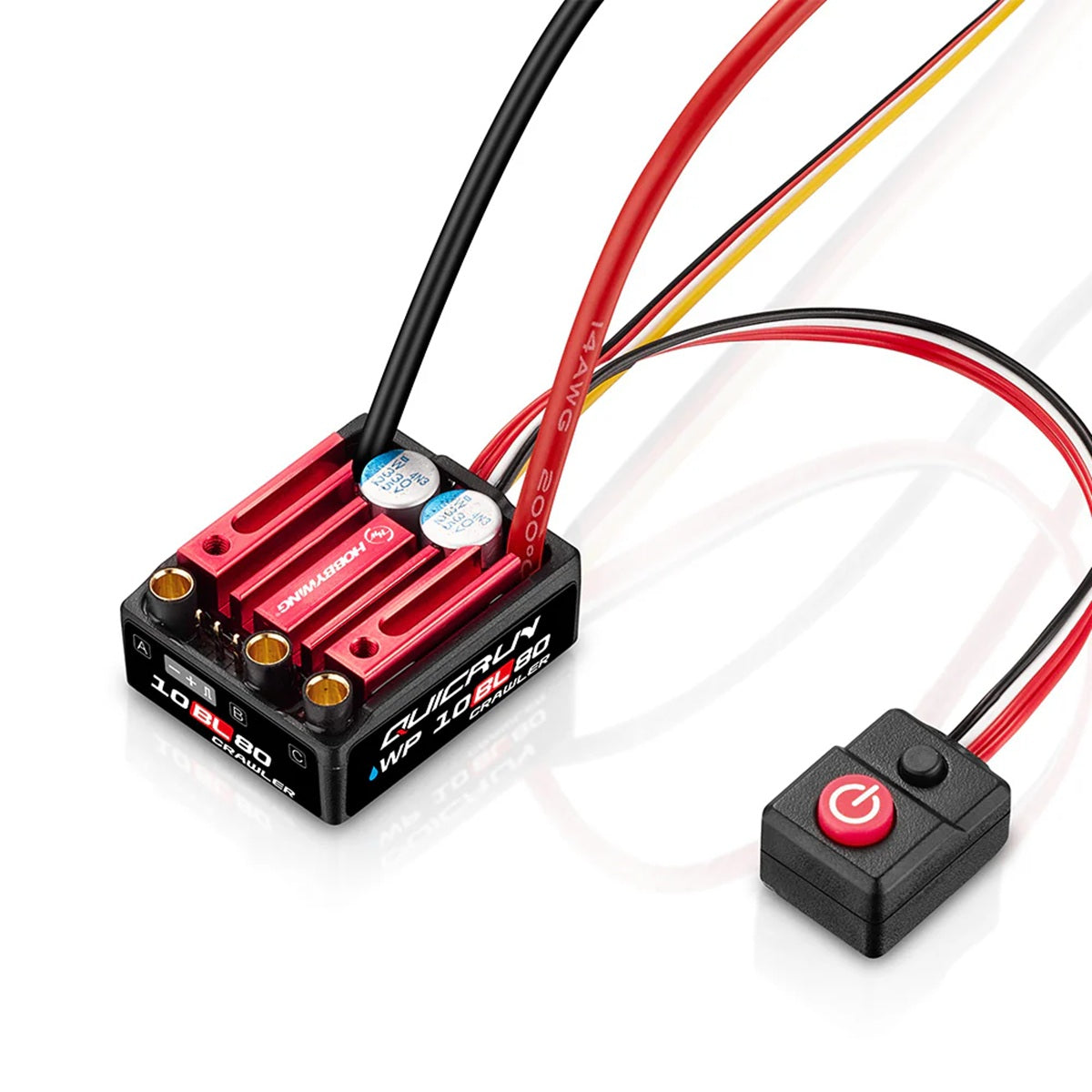

- 1x WP 10BL80 Crawler ESC

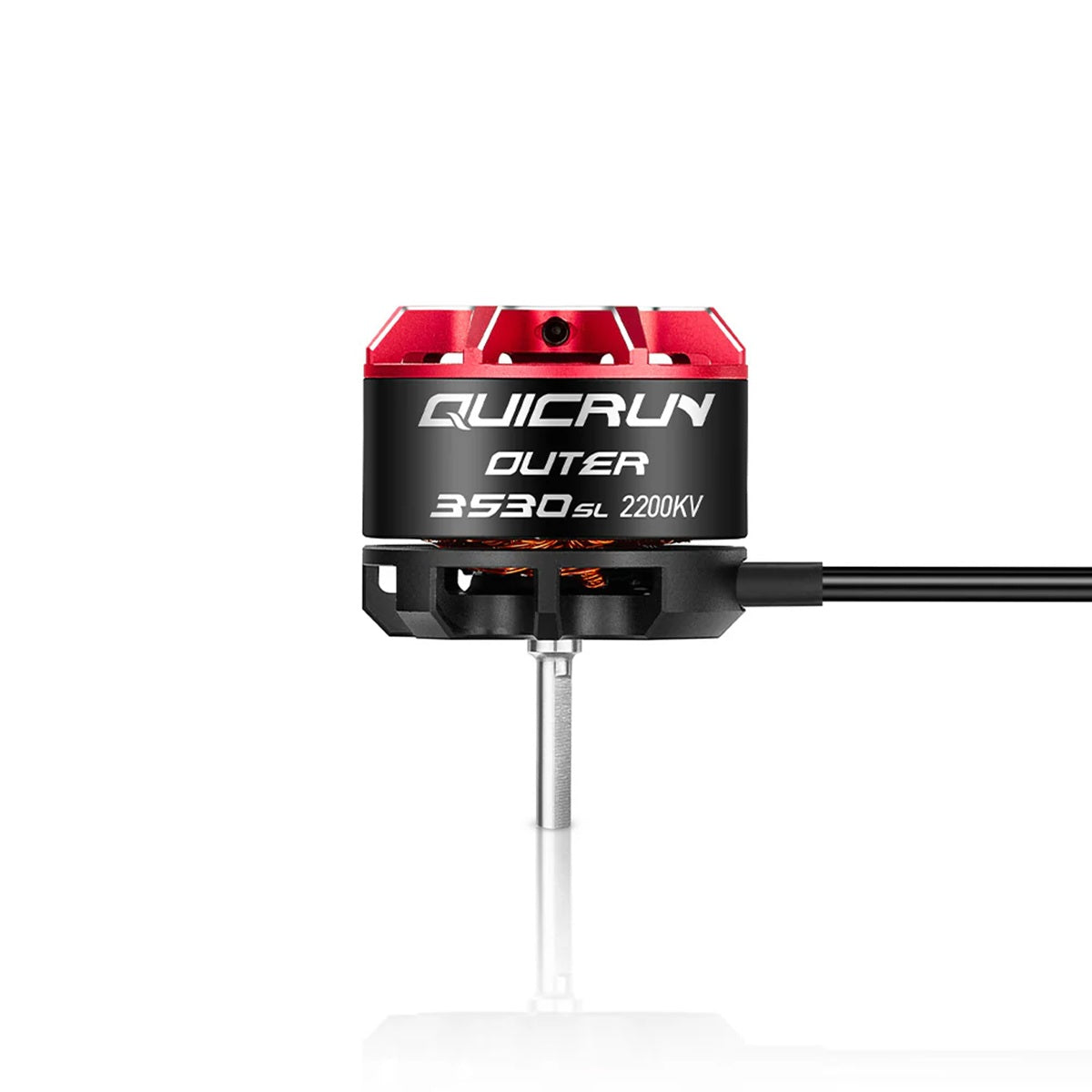

- 1x QR 3530SL 2200KV Outer Motor
- Factory-installed XT60 plug
- 1x Decal and Manual
- 1x Heatshrink kit, double-sided tape, and zip ties.
Features:
- It supports Sensorless Brushless motors & Brushed Motors.
- Compatible with most brushed or brushless motors on the market.
- Fully waterproof design for all conditions.
- Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
- Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
- Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
- It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.
ESC Specifications:
- Continuous / Peak Current: 80A / 240A
- Motor Type: Sensorless brushless motor, and brushed motor
- Applications: 1/10 Crawlers
- Applicable Motors: Outer 3530SL sensorless outrunner motors: 540, 555 including other brushed motors.
- LiPo Cells: 2-4S LiPo
- BEC Output: 6.0V / 7.4V / 8.4V, 5A
- Size: 36(L)*30(W)*15.5(H)mm
- Weight: 47.8g (Included wires & connectors)
- Programming Port: Independent programming port
Motor Specifications:
- KV: 2200
- LiPo Cells: 2-4S
- No-Load Current (A): 5
- Max Output Power (W): 520
- Current @ Max Input Power (A): 40
- Diameter / Length: 35mm (1.38") x 30mm (1.18")
- Shaft Diameter / Length: 3.175mm (0.13") x 15.5mm (0.61")
- Poles: 14
- Weight: 102g
- Applications: 1/10, 1/12 Crawler
