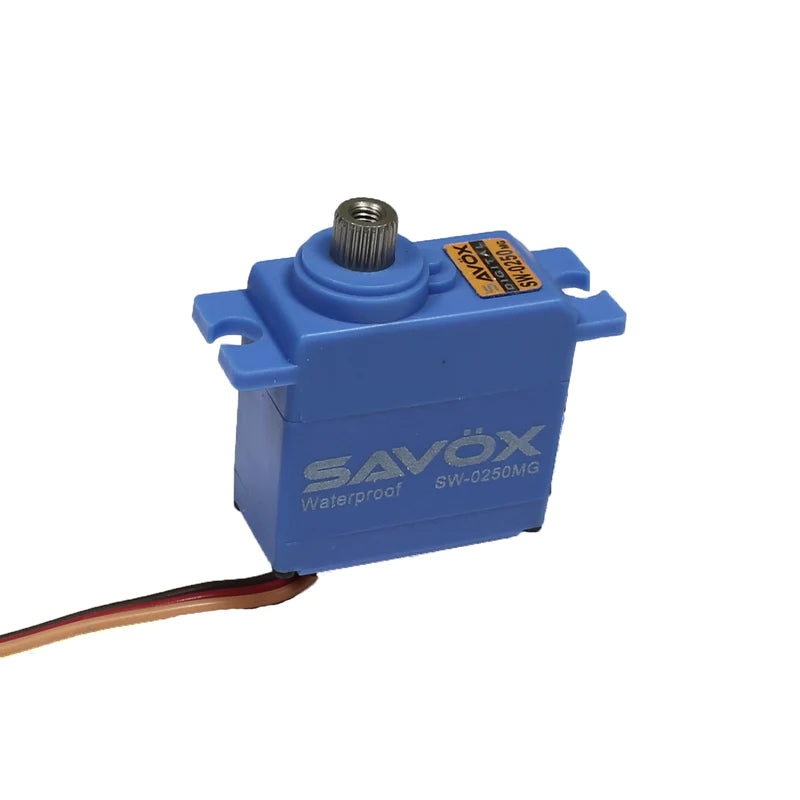

Savox Waterproof Micro Digital Servo .11/69@6V, Ideal for Traxxas 1/16 Scale The SW-0250MG is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles.
- Strong metal gear train for added durability.
- Waterproof case design.
- Ideal for cars and boats subject to water or snow.
- Ideal for Traxxas 1/16 vehicles.
- Torque @4.8v - 3.5kg/48.6oz-in
- Torque @6v -5.0kg/69.4oz-in
- Speed @4.8v - 0.14 sec/60 deg
- Speed @6v - 0.11 sec/60 deg

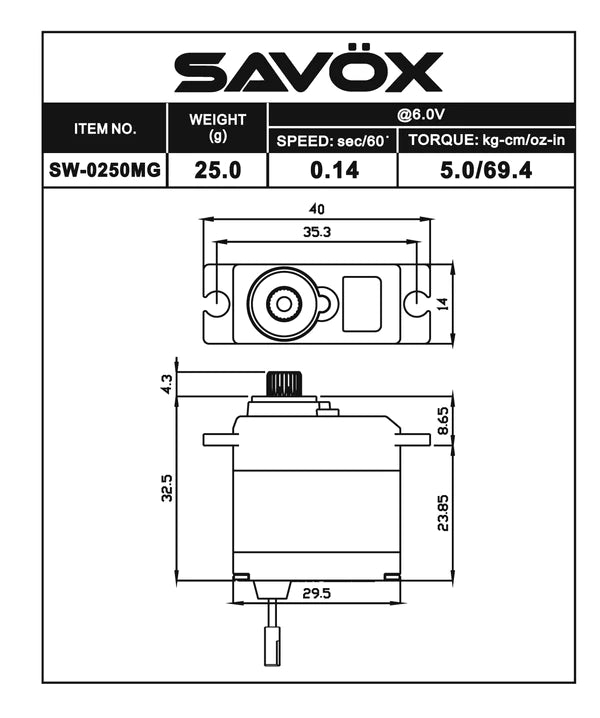

- Dimensions L x W x H (mm): 29.5 x 14.0 x 32.5
- Weight: 25.0g
- Operating Temperature: 14¡ - 122¡F (-10¡ - 50¡C)
- Running Current (no load): 80mA @4.8V, 100mA @6.0V
- Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 1BB
- Operating Travel: 100¡ (1000_ 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800_ 2200 µ second
- Maximum Travel: Appx 130¡ (900_ 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
