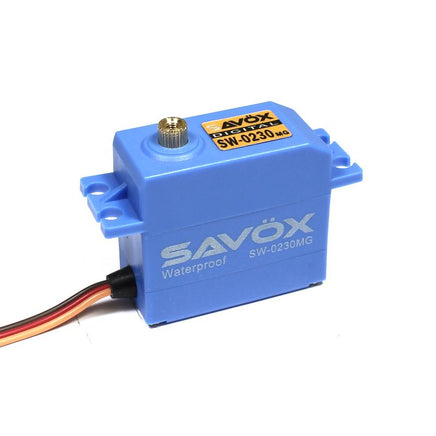

The SW-0230MG is a budget-friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if you're looking to drive your RC vehicle in any condition...rain, sleet, or snow.
- Strong metal gear train for added durability.
- Waterproof case design.
- Capable of HV operation.
- Ideal for cars, trucks, and boats subject to water or snow.
- Torque @6v - 6.5kg/90.3oz-in
- Torque @7.4v - 8.0kg/111.1oz-in
- Speed @6v - 0.16 sec/60 deg
- Speed @7.4v - 0.13 sec/60 deg
- Dimensions L x W x H (mm): 41.8 x 20.2 x 38.0
- Weight: 60.0g
- Operating Temperature: 14¡ - 122¡F (-10¡ - 50¡C)
- Running Current (no load): 100mA @6.0V, 120mA @7.4V
- Stall Current (at locked): 1500mA @6.0V, 1800mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100¡ (1000_ 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800_ 2200 µ second
- Maximum Travel: Appx 130¡ (900_ 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
